F&S efusA9X


Posted on May 24, 2015


F&S efusA9X

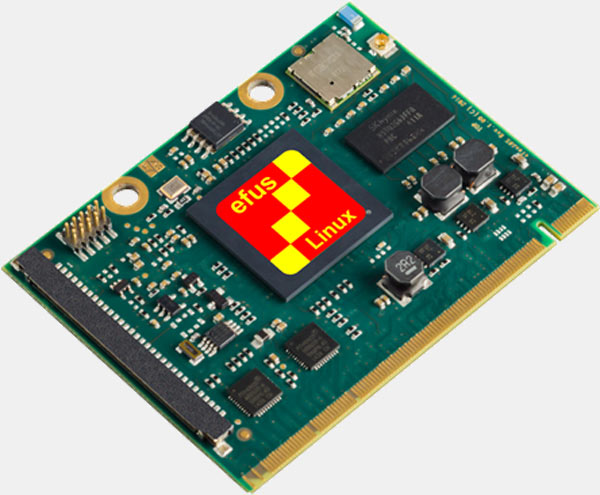

efus™A9X is another compact and inexpensive module in efus™ form factor. It is perfectly suited for applications with numerous interfaces in medicine and industry.

The module offers interfaces like 2x Gigabit Ethernet, 4x Serial, USB2.0 Host/Device, 2x CAN, 2x I²C, 2x SPI, I²S Audio, 2x SDIO, PCIe, Camera (analog/digital), WLAN and Bluetooth, as well as high accuracy RTC (TXCO). LCD TFTs can be connected via 18Bit RGB (up to WXGA) or 24bit LVDS (up to WXGA). Touch is available externally via I²C.

Android Lollipop 5.1.1 for F&S Boards

F&S boards are now available with Android operating system as well. The latest Lollipop version 5.1.1 is used and kernel version 3.14.38 is used as base. All typical Android interfaces like Wifi, Bluetooth, USB, SD Card and Audio are supported. One can easily control the device by using the typical Android swipe gestures, just connect a touch screen. The Android Debugging Bridge (ADB) provides important functions for easy app development.

Flexible COM Module with Certified Wifi and Bluetooth

Our small and rugged COM efus™A9X has certified Wifi (IEEE802.11b/g/n) and Bluetooth (BT3.0, 2.1+EDR) via chip antenna or antenna socket. efus™A9X is ideal for security-critical applications. The heterogenous multi-core structure (Freescale i.MX6 SoloX) offers security features like Secure Boot, secure data storage, cryptographic accelerators, Resource Domain Controller isolation of system resources and secure messaging unit for Cortex-A9 and Cortex-M4 communications


F&S

F&S

F&S develops and manufactures excellent embedded ARM COM based systems, SBC Q7, etc ...
